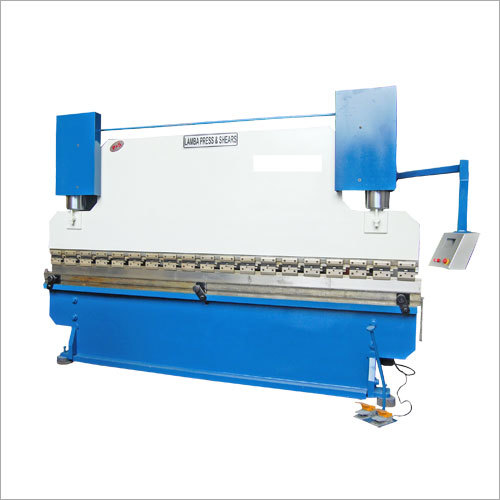

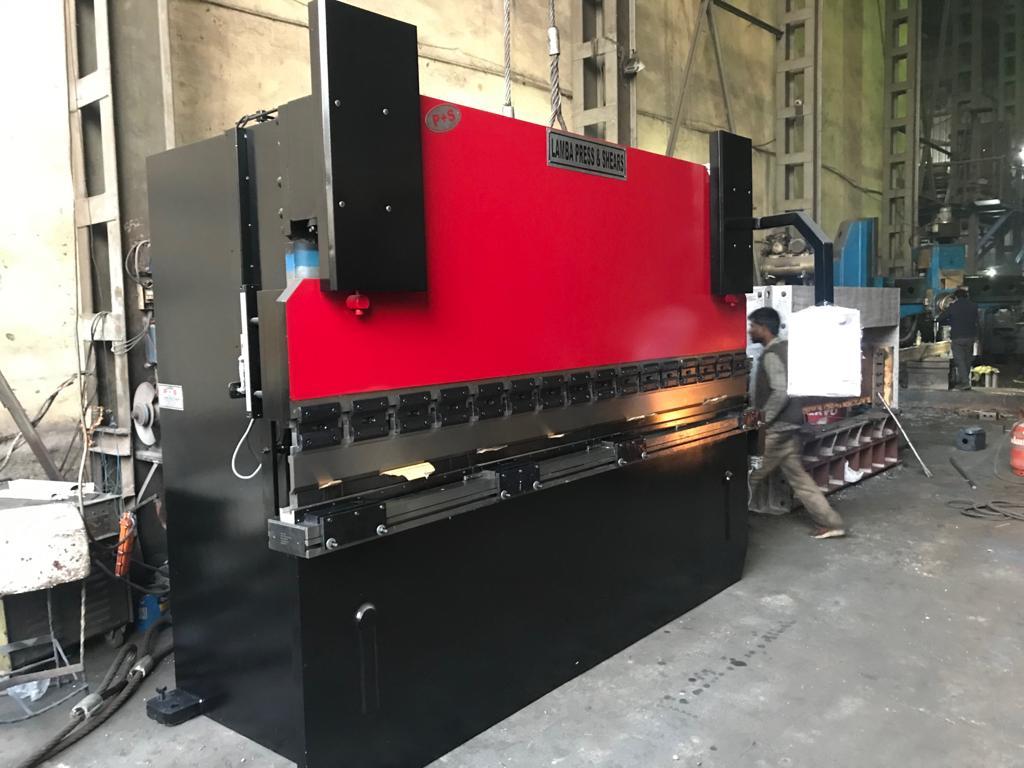

CNC Press Brake

Name: CNC Press Brake
Brand: LAMBA PRESS & SHEARS
Price: 600000 INR
Availability: InStock

Price 600000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CNC Press Brake Specification

Nominal Force
1000 kN

Power Source
Electric

Condition
New

Dimension (L*W*H)
2950 mm x 1650 mm x 2400 mm

Power(W)
7500 W

Voltage
380V / 415V

Motor
Main Electric Motor 7.5 kW

PLC System
Siemens / Delem CNC Controller

Solenoid Valve
AC220V / DC24V

Pre-Fill Valve
Included

Proportional Valve
Included

Pressure Gauge
Yes

Max Opening Distance
360 mm

Working Table Size
2500 mm x 160 mm

Machine Weight
6900 kg

Working Speed
7 mm/s (Approach), 12 mm/s (Return)

Hydraulic System
Bosch-Rexroth / Yuken

Control Accuracy
±0.01 mm

Throat Depth
320 mm

Slide Stroke
150 mm

Back Gauge Range
500 mm

Bending Length
2500 mm

Tooling
Standard Punch and Die Set

Oil Tank Capacity
200 L

Main Application
Sheet Metal Bending

Safety Device
Light Curtain & Emergency Stop

Crowning System
Manual/Automatic (Optional)

Frame Construction
Heavy Duty Welded Steel Frame

CNC Press Brake Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA)

Supply Ability
10 Pieces Per Month

Delivery Time
4-5 Week

Main Export Market(s)
Australia, North America, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia

Main Domestic Market
All India

About CNC Press Brake

We are focused on export and supply a most reliable CNC Press Brake to our valued clients. The production of these machines involved a leading technology and advanced machinery which utilizes the high-grade raw materials. A CNC Press Brake is used in the bending process of sheet or plates of metal. The bending properties required in the metal sheet or plate by the industries can be predetermined in LAMBA press brake machine. A specification required in our product can be fulfilled by our proficient employees.

Superior Precision for Sheet Metal Bending

Engineered for accuracy, the CNC Press Brake delivers a control accuracy of 0.01 mm, making it suitable for producing both complex and routine metal bends. Its advanced PLC system ensures repeatable, high-quality results essential for manufacturing industries.

Robust and Reliable Construction

The machine features a heavy-duty welded steel frame to minimize deflection during operation, providing long-term durability. Hydraulic systems from Bosch-Rexroth or Yuken and premium CNC controllers ensure consistent, trouble-free performance.

Flexible Control and Enhanced Safety Features

Operators benefit from both manual and optional automatic crowning, standard punch and die sets, and an intuitive controller interface. Safety devices, including a light curtain and emergency stop, protect users and streamline compliance with industrial safety standards.

FAQs of CNC Press Brake:

Q: How is the CNC Press Brake operated and controlled?

A: Operation is managed via a Siemens or Delem CNC controller and PLC system, enabling precise setup and control over bending parameters for a wide range of sheet metal tasks. The intuitive interface simplifies the programming of bend sequences and adjustments.

Q: What types of safety features are integrated into the machine?

A: The CNC Press Brake incorporates a light curtain and an emergency stop to prevent accidents, ensuring operator safety during metal forming processes. These features are standard and help meet rigorous industrial safety regulations.

Q: When is automatic crowning recommended over manual crowning?

A: Automatic crowning is ideal for high-volume or complex bending operations where consistent results are essential, whereas manual crowning suffices for occasional, less demanding tasks. Automatic systems improve repeatability and overall bending accuracy.

Q: Where can this CNC Press Brake be installed and utilized?

A: Designed for industrial settings, the machine is suitable for metal fabrication workshops, manufacturing plants, and service centers in India seeking precision bending for various sheet metal applications.

Q: What is the process for adjusting back gauge and slide stroke?

A: Adjustments are made directly through the CNC controller, allowing for quick changes in back gauge position (up to 500 mm) and slide stroke (up to 150 mm), which streamlines setup for different workpieces and bend depths.

Q: How does the hydraulic system contribute to performance?

A: The Bosch-Rexroth or Yuken hydraulic system delivers steady power, precise pressure control, and efficient cycling, enabling smooth operation, fast approach speeds, and reliable returns on each bend.

Q: What are the benefits of using this CNC Press Brake for sheet metal fabrication?

A: Users benefit from high accuracy, reliable performance, and enhanced safety, with support for a variety of materials and bend complexities, making it a valuable asset for boosting productivity and maintaining quality in manufacturing environments.
